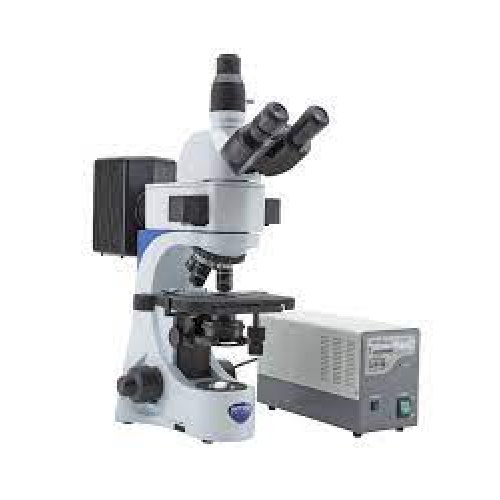

FLUORESCENCE MICROSCOPE

Specifications Standard features Binocular or Trinocular tube, 45°/ 30 inclined, 360° rotatable, IPD 55-75 mm, with Dioptric adjustment on left ocular Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.Coarse Adjustment Travel Range: 22mm. (Stage Movement Distance Up/Down). Fine Adjustment Division: 0.002mm.,Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides,Tension Adjustable Coarse Focusing. Wide Field eyepiece WF 10x/16mm paired with eye guards DIN Fluorescent Achromatic Objectives 4x,10x,40x (Spring loaded) and 100x (Spring loaded), Oil immersion Transmitted Koehler Illumination system 6V-20W Halogen with intensity contro Epi-fluorescence unit: power unit 220V, mercury lamp house 100W/DC, epi-fluorescence illuminator Excitation filter (EX) comprising of – Blue light (EX-490), Green Light (EX-545) Illumination Box with Power Supply Unit 220 Volt & HBO, Super High – pressured Spherical mercury vapor lamp 100W Instruction Manual, Dust cloth, Dust cover. Standard Configurations DIN Fluorescent Achromatic Objectives 4x,10x,40x (Spring loaded) and 100x (Spring loaded), Oil immersion Epi-fluorescence unit: power unit 220V, mercury lamp house 100W/DC, epi-fluorescence Optional accessories DCM 35 Digital Camera for Microscope Related products
